Important Considerations When Choosing a Commercial Hvac System

Article Outline

This article begins with a practical outline and then expands each topic into a detailed discussion. It covers the main categories of commercial HVAC equipment, the factors that determine which type fits a building, the role of efficiency and controls, the importance of installation and maintenance, and the steps owners and managers can take to choose wisely.

• Major commercial HVAC system types and how they compare
• Key selection criteria such as building size, climate, load profile, and ventilation needs
• Efficiency ratings, automation, and life-cycle cost planning
• Installation quality, commissioning, and long-term maintenance
• Final decision-making advice for owners, operators, and facility teams

1. Understanding the Main Types of Commercial HVAC Systems

The phrase commercial HVAC sounds simple, but it actually covers several different system families, each designed for a different style of building and occupancy pattern. A small retail store may do well with a packaged rooftop unit, while a hospital, university building, or large office complex may require a more sophisticated arrangement built around chillers, boilers, pumps, air handlers, and digital controls. The right choice depends on how the building uses heat, cooling, ventilation, and zoning throughout the day.

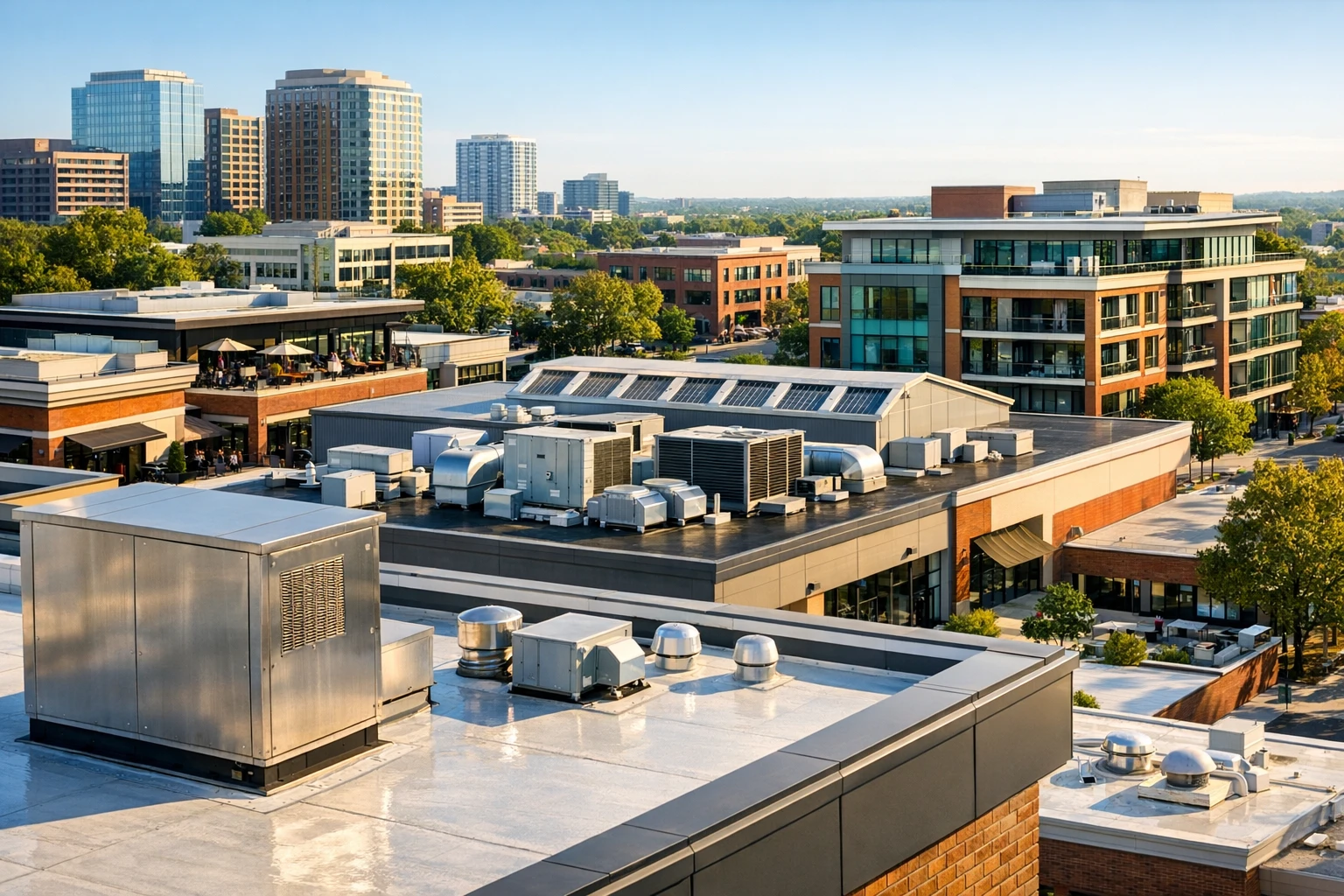

Packaged rooftop units, often called RTUs, are among the most common options in light commercial buildings. They place major heating and cooling components in one cabinet, which can simplify installation and free indoor space. RTUs are often used in retail, restaurants, schools, and single-story offices because they are familiar to contractors and relatively straightforward to service. However, their efficiency and zoning flexibility can be more limited when compared with advanced systems in larger buildings.

Split systems are another option, especially for smaller commercial spaces. These separate indoor and outdoor components and can be suitable for offices, clinics, and storefronts. They may cost less upfront, but they are not always ideal for properties with complex ventilation demands or large interior zones.

Variable refrigerant flow systems, commonly called VRF or VRV depending on manufacturer terminology, have become popular for buildings that need precise zone control. These systems can serve multiple indoor units from one outdoor system and are especially useful in offices, hotels, schools, and mixed-use properties where one room may need cooling while another needs heating. Their strengths include flexibility, quiet operation, and strong part-load efficiency. Their challenges can include higher design complexity, the need for experienced installers, and careful attention to refrigerant piping layout.

For larger commercial facilities, central plants using chillers and boilers are often the backbone of indoor climate control. These systems can support extensive ductwork or hydronic distribution across large floor areas. They offer scalability and can perform very well in campuses, hospitals, and high-rise buildings, but they require more capital, more specialized maintenance, and more planning during design.

• RTUs are practical for simple layouts and moderate budgets.
• Split systems work well in smaller buildings with limited zoning demands.
• VRF systems offer fine control and strong flexibility for multi-zone spaces.
• Chiller and boiler plants suit large properties that need central management and capacity.

In other words, there is no universal winner. The most effective commercial HVAC system is the one that matches the building’s load pattern, operating schedule, occupancy needs, and service resources. That truth may not sound dramatic, but it is what separates a system that merely runs from one that performs reliably for years.

2. Building Factors That Should Guide the Selection Process

Selecting a commercial HVAC system without studying the building itself is like buying shoes without checking the size, terrain, or weather. A system that performs well in one property can be inefficient, noisy, oversized, or hard to maintain in another. This is why serious HVAC planning starts with load calculations, building use patterns, and an honest look at future operational needs.

One of the first questions is building size and layout. A compact office with regular hours behaves differently from a warehouse with tall ceilings, loading doors, and uneven occupancy. A restaurant produces heat from kitchen equipment and needs aggressive exhaust and makeup air planning. A medical clinic may require tighter control of temperature, humidity, and filtration. A school has shifting occupancy and often needs robust ventilation during peak hours. In each case, the same tonnage does not guarantee the same result.

Climate matters just as much. Buildings in hot, humid regions often need stronger latent cooling performance to remove moisture, while properties in colder areas may prioritize heating reliability, defrost performance for heat pumps, and freeze protection in hydronic systems. Local utility rates also influence the decision. In regions with expensive electricity but relatively low gas costs, the operating math may look different from areas where electrification incentives are changing the financial picture.

Ventilation and indoor air quality have become far more prominent in recent years. Standards such as ASHRAE 62.1 help shape expectations for outside air and ventilation design in commercial spaces. Bringing in fresh air improves indoor conditions, but it also adds load to the system. That means the HVAC design has to balance comfort, air quality, humidity, and energy use rather than chase only one goal.

• Consider occupancy patterns: fixed, seasonal, rotating, or around the clock.
• Review internal heat gains from lighting, equipment, servers, kitchens, and machinery.
• Assess zoning needs for different tenants, departments, or floors.
• Check local codes, utility incentives, and available service support in your market.

Another essential factor is redundancy. In some buildings, a brief outage is inconvenient. In others, it can shut down operations, damage inventory, or create a health and safety issue. A data room, lab, pharmacy, or healthcare space may need backup capacity or staged equipment rather than a single point of failure. Noise is also easy to overlook until it becomes a daily complaint; offices, classrooms, and hospitality settings all benefit from quieter designs.

Good HVAC decisions grow out of real building data, not guesswork. When owners, engineers, and contractors study the building’s profile carefully, the equipment choice becomes clearer, and expensive surprises become less likely.

3. Efficiency, Controls, and the Real Cost of Ownership

It is tempting to compare commercial HVAC systems by purchase price alone, especially when budgets are tight and replacement timelines are short. Yet the initial number on a proposal rarely tells the full story. HVAC often represents one of the largest energy loads in a commercial building, and according to the U.S. Department of Energy, heating, cooling, and ventilation can account for a substantial share of total building energy use. That means an apparently cheaper system may cost much more over ten or fifteen years if it runs inefficiently, short-cycles, or lacks proper controls.

Efficiency in commercial equipment is measured in several ways, depending on the system type. You may see EER, IEER, COP, AFUE, or seasonal performance metrics. For many commercial cooling applications, IEER is especially useful because it reflects part-load conditions, and real buildings spend much of their time operating below peak demand. A system that performs well only at full capacity may look respectable on paper while wasting energy in actual day-to-day operation.

Controls are where the plot thickens. Modern building automation systems can schedule equipment, reset temperatures, monitor alarms, optimize ventilation, and reduce simultaneous heating and cooling. Features like variable speed fans, demand-controlled ventilation using CO2 sensing, economizers, occupancy scheduling, and smart zoning can turn a decent system into a much more economical one. On the other hand, advanced controls that are poorly commissioned or barely understood by staff can become expensive decorations.

Life-cycle cost analysis is the better lens. Instead of asking, “Which bid is lowest today?” ask, “Which option provides the best value over the equipment’s useful life?” That calculation should include energy use, maintenance labor, expected repairs, filter replacement, downtime risk, controls support, and possible retrofit flexibility. The answer is not always the premium option, but it is often more nuanced than the least expensive line item.

• Upfront cost is only one part of the financial picture.
• Part-load efficiency matters because commercial buildings rarely operate at peak load all day.
• Controls can reduce waste, but only when they are configured and maintained properly.
• Utility rebates and tax incentives may improve the payback of high-efficiency systems.

There is also a human side to efficiency. A building that maintains steady temperatures and ventilation often supports productivity, comfort, and tenant satisfaction better than one that drifts between extremes. In that sense, efficient HVAC is not just about lower bills; it is about creating a building that feels stable, competent, and ready for work every morning. That quiet consistency is easy to miss, but once it disappears, everyone notices.

4. Installation Quality, Commissioning, and Maintenance Planning

Even the most advanced commercial HVAC system can disappoint if it is installed poorly. This point is worth stressing because many performance problems blamed on equipment are actually design, installation, or startup issues. Oversized units, undersized ductwork, improper refrigerant charge, weak controls integration, and neglected balancing can all undermine comfort and efficiency long before the warranty period ends.

Proper design begins with accurate load calculations and equipment selection, but the field work is just as important. Duct leakage, poorly sealed connections, bad sensor placement, and inadequate condensate management can create chronic trouble. Hydronic systems need careful attention to flow rates, pump setup, insulation, and control sequencing. Ventilation systems must deliver the required outside air without introducing humidity issues or pressure imbalances. On a construction site, these details can look small. In operation, they become the difference between smooth performance and endless service calls.

Commissioning is the step that turns installed equipment into a functioning system. During commissioning, technicians and engineers verify that the system operates as intended, sequences respond correctly, air and water flows are balanced, sensors read accurately, and controls perform under different conditions. This process can reveal issues that would otherwise remain hidden until occupants begin to complain. In a complex building, skipping commissioning is a little like launching a ship without checking whether the navigation instruments agree with the map.

Maintenance should be planned before the system is purchased, not after it begins to fail. Some systems require more specialized training, parts availability, or controls support than others. If the local market has few technicians experienced with a particular platform, repair delays can become costly. Preventive maintenance protects performance and equipment life by addressing filters, belts, coils, motors, drains, sensors, refrigerant levels, combustion safety, and control calibration on a scheduled basis.

• Ask whether the system can be serviced safely and efficiently in the available space.
• Review replacement part lead times and local technician familiarity.
• Include commissioning requirements in the project scope, not as an afterthought.
• Use maintenance records to track recurring issues and declining performance.

A well-maintained HVAC system does not merely avoid breakdowns. It tends to hold comfort more steadily, use energy more predictably, and last closer to its expected service life. In commercial settings, where downtime can affect tenants, staff, customers, or production, that reliability has tangible business value. Good maintenance is not glamorous, but it is often the quiet force that protects every other investment made in the system.

5. Conclusion: Making the Right Choice for Your Building and Budget

When it is time to choose a commercial HVAC system, owners and facility managers are not just buying machinery. They are choosing how the building will behave on busy afternoons, during seasonal extremes, and across years of occupancy changes. That decision affects energy bills, comfort complaints, maintenance workload, code compliance, and the building’s ability to support business operations without drama.

The smartest path is usually methodical rather than rushed. Start by defining what the building truly needs: capacity, zoning, ventilation, humidity control, noise limits, service access, redundancy, and future flexibility. Then compare options in a structured way. A lower first cost may be appropriate in some cases, especially for simple properties with predictable loads. In other situations, spending more upfront for controls, zoning flexibility, or higher efficiency can pay back through lower operating costs and fewer headaches over time.

It also helps to evaluate contractors and manufacturers with the same care used for the equipment itself. Clear proposals should explain assumptions, included scope, warranty terms, startup procedures, and control strategy. Good partners are willing to discuss load calculations, maintenance expectations, and what happens if the building use changes in five years. Vague promises are less useful than detailed answers.

• Request load calculations and not just equipment tonnage recommendations.
• Compare life-cycle cost, not only installed price.
• Confirm who will handle commissioning, training, and future service.
• Make sure the selected system fits the skill level of the on-site or local maintenance team.

For office owners, retail operators, property managers, school administrators, and industrial decision-makers, the practical takeaway is simple: match the system to the building, the people inside it, and the way the space actually runs. If those three elements align, the result is usually better comfort, clearer budgeting, and fewer operational surprises. Commercial HVAC may live out of sight, but its impact is felt everywhere. Choose carefully, and the building will return that care every day in the form of stable performance, cleaner air, and a calmer work environment.
